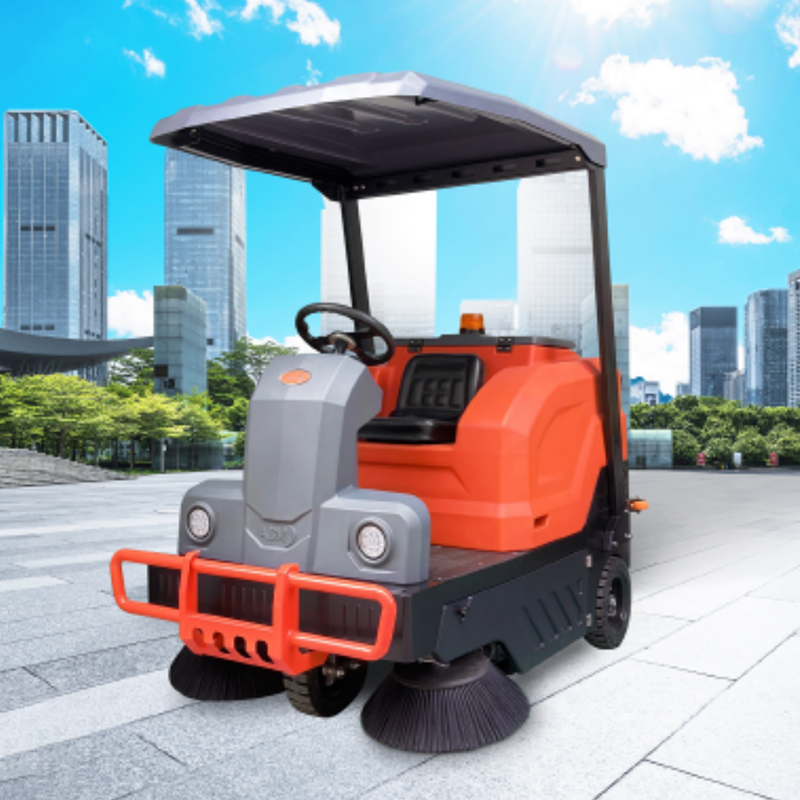

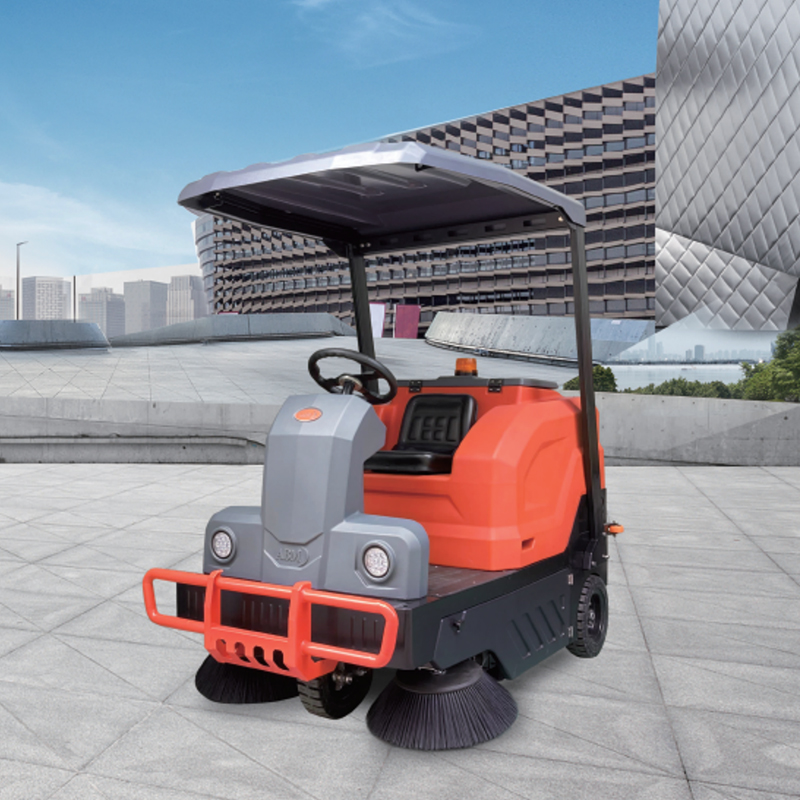

Pioneer No. 1 Electric Ride-On Sweeper

Pioneer 1

Consult

Features
Technical Indicators
Overall Dimension

Small body, great wisdom ABM Pioneer No. 1 sweeper has various leading configurations of the new ABM series of pure electric sweepers. The whole car is designed with rotational molding technology, which is solid and stable, exquisite and flexible. It is suitable for cleaning small passages such as workshop passages, warehouses, communities, and properties. Imported Italian smart cleaning Internet of Things system Imported Italian smart cleaning Internet of Things system, fully integrated circuit control board docking, can remotely control the machine operation status through computers and mobile phones, including real-time working data monitoring of the machine's walking trajectory, the working status of the whole machine and each component, and the fault code is transmitted to the mobile phone, so that managers can see it at a glance and service support is one step ahead. Chip-type high-integration electronic control system Chip-type high-integration electronic control system, advanced technology level, automatic short-circuit protection, automatic stop of overcurrent protection, simple and fast machine maintenance. Humanized car handbrake Sedan-style handbrake, comfortable and high-end feel, easy to operate, and high reliability. Patented shock absorption Reduce the machine failure rate caused by vibration and improve the comfort of operation. High-quality rare earth motor Super strong dust suction system High-quality suction motor: 500W high-quality rare earth permanent magnet motor, strong torque, high speed, stable performance Convenient filter cleaning External dust blowing duct, daily filter cleaning, no need to remove the filter, simple and fast. Rotational molding process of the whole car Solid and exquisite, large water tank capacity.
Project Name
unit
parameter
List of main technical advantages
Sweeping width
MM
1400
Patented shock absorption system
Reduce the machine failure rate caused by vibration and improve the operating comfort.
Maximum cleaning efficiency
M²/H
14000
Intelligent control integrated circuit
PCB control board integrated circuit, high reliability and easy to use.
Grade climbing ability
%
35
Superior climbing ability
It adopts an ultra-large torque reduction drive axle with a designed 3 times overload capacity. It is stable and reliable, and its climbing ability is comparable to that of a car.
Main brush length
mm
700
Side brush diameter
mm
550
Drive axle
Ultra-quiet stepless speed-changing rear axle, integrated suspension load-bearing design, profiled and ground gear design, no noise, no oil leakage.
Filter area
M²
9
Super long endurance
Adopting the world's top technology maintenance-free power battery, it has long-lasting power and requires no maintenance.
Power source
V
48
Easy filter cleaning
Large imported material filter, built-in electric dust collector, daily filter cleaning, no need to remove the filter, simple and quick.
Working time
h
4-6
6-8
Stable overall performance
Engineering-grade design, manufactured strictly in accordance with enterprise standards, stable performance and low maintenance cost.
Water tank capacity
L
120
Trash tank capacity
L
160
Easy maintenance
The structural design is neat and elegant, and all internal parts are clearly visible, making it convenient for personnel to carry out daily maintenance.
Operating power
W
Main brush 700+ fan 500+
Side brush 100*2+ dust shaker 80
Clean equipment management system
Equipment management, merchant management (equipment rental management, property point management, etc.), and statistical management.
Drive power
W
2.5T
2500(AC drive)
Jiejie Equipment IoT Terminal
Equipment positioning, remote control, equipment usage log recording and feedback, equipped with CAN/RS485 interface, can communicate with other controllers, base station positioning (GPS can be installed), remote control (3-way power on and off) through GPRS or 4G to connect to the cloud server; 4-way switch single input; equipped with external antenna interface, the terminal placed in the iron box can receive signals through the external antenna.
Total power
W
3980(AC drive)
Travel speed
Km/h
10
Operating speed
Km/h
7-10
Addition 1
Rear storage box: Equipped with a rear storage box, it is more user-friendly and has strong applicability.
Dimensions (length*width*height)
mm
1900*1400*1900
Addition 2
Windshield.
Net weight
kg
600

Project Name	unit	parameter	List of main technical advantages
Sweeping width	MM	1400	Patented shock absorption system	Reduce the machine failure rate caused by vibration and improve the operating comfort.
Maximum cleaning efficiency	M²/H	14000	Intelligent control integrated circuit	PCB control board integrated circuit, high reliability and easy to use.
Grade climbing ability	%	35	Superior climbing ability	It adopts an ultra-large torque reduction drive axle with a designed 3 times overload capacity. It is stable and reliable, and its climbing ability is comparable to that of a car.
Main brush length	mm	700	Superior climbing ability
Side brush diameter	mm	550	Drive axle	Ultra-quiet stepless speed-changing rear axle, integrated suspension load-bearing design, profiled and ground gear design, no noise, no oil leakage.
Filter area	M²	9	Super long endurance	Adopting the world's top technology maintenance-free power battery, it has long-lasting power and requires no maintenance.
Power source	V	48	Easy filter cleaning	Large imported material filter, built-in electric dust collector, daily filter cleaning, no need to remove the filter, simple and quick.
Working time	h	4-6 6-8	Stable overall performance	Engineering-grade design, manufactured strictly in accordance with enterprise standards, stable performance and low maintenance cost.
Water tank capacity	L	120	Stable overall performance
Trash tank capacity	L	160	Easy maintenance	The structural design is neat and elegant, and all internal parts are clearly visible, making it convenient for personnel to carry out daily maintenance.
Operating power	W	Main brush 700+ fan 500+ Side brush 100*2+ dust shaker 80	Clean equipment management system	Equipment management, merchant management (equipment rental management, property point management, etc.), and statistical management.
Drive power	W	2.5T 2500(AC drive)	Jiejie Equipment IoT Terminal	Equipment positioning, remote control, equipment usage log recording and feedback, equipped with CAN/RS485 interface, can communicate with other controllers, base station positioning (GPS can be installed), remote control (3-way power on and off) through GPRS or 4G to connect to the cloud server; 4-way switch single input; equipped with external antenna interface, the terminal placed in the iron box can receive signals through the external antenna.
Total power	W	3980(AC drive)
Travel speed	Km/h	10
Operating speed	Km/h	7-10	Addition 1	Rear storage box: Equipped with a rear storage box, it is more user-friendly and has strong applicability.
Dimensions (lengthwidthheight)	mm	190014001900	Addition 2	Windshield.
Net weight	kg	600	Addition 2	Windshield.
